aqua-life
applications
Salmon, Tuna, Cod, Trout, Halibut and Shrimp are some of the species that can be safely farmed using the Aqua-Life Harvesting System.
JV SHRIMP TRANSFERS
BP40SS Electric Pump, Suction Transition Cone, Oxygen Injection Fitting, 4in Hose, Hose Clamps
.jpg)
BP40e ss
4in - Inlet/outlet (100mm)7.5HP - Main Pump Drive800 GPM - Pump Output Max10000 ft (3000m) - Max Distance 300 kg - Max Avg Fish Weight
.jpg)
Transition Cone
.jpg)
Oxygen Injection Fitting
.jpg)
Image caption
Juvenile transfers ecuador
Smolt transport
.jpg)
BP80 ELECTRIC TRANSFER PUMP, HARVESTER WITH COUNTER, BOX INVERTED CHUTE,
.jpg)
BP80e
8in - Inlet/outlet (200mm)20HP - Main Pump Drive2700 GPM - Pump Output Max2000m - Max Distance 1.5 kg - Max Avg Fish Weight
.jpg)
Harvester with Counter
.jpg)
Box Inverted Chute
.jpg)
Hose Chain Guide
smolt transfers idaho
TILAPIA HARVESTING
.jpg){kind=spacer}
BP100 STATIONARY PUMP, TILAPIA STATIONARY GRADER, DIESEL POWER UNIT
BP100 hydraulic
8in - Inlet/outlet (200mm)20HP - Main Pump Drive2700 GPM - Pump Output Max2000m - Max Distance 1.5 kg - Max Avg Fish Weight
Tilapia Stationary Grader
.jpg)
Diesel Power Unit
.jpg)
Hose Chain Guide
tilapia transfer
Tilapia harvesting
.jpg)
BP100HF TRANSFER PUMP, DIESEL POWER UNIT, SUCTION TUBE, STATIONARY GRADER, PERISCOPE TUBE
BP100hf hydraulic
10in - Inlet/outlet (200mm)20HP - Main Pump Drive2700 GPM - Pump Output Max2000m - Max Distance 1.5 kg - Max Avg Fish Weight
Tilapia Stationary Grader
Diesel Power Unit
.jpg)
Dewatering Units
tilapia HARVESTING BRASIL
Shrimp harvesting
BP140 HYDRAULIC PUMP, FOOT VALVE, DIESEL POWER PACK
.jpg)
1080P PUMP
10in - Inlet/outlet (200mm)20HP - Main Pump Drive2700 GPM - Pump Output Max2000m - Max Distance 1.5 kg - Max Avg Fish Weight
Hose Clamps
.jpg)
Shrimp Chute
.jpg)
Hose Chain Guide
SHRIMP HARVESTING
submersible applications

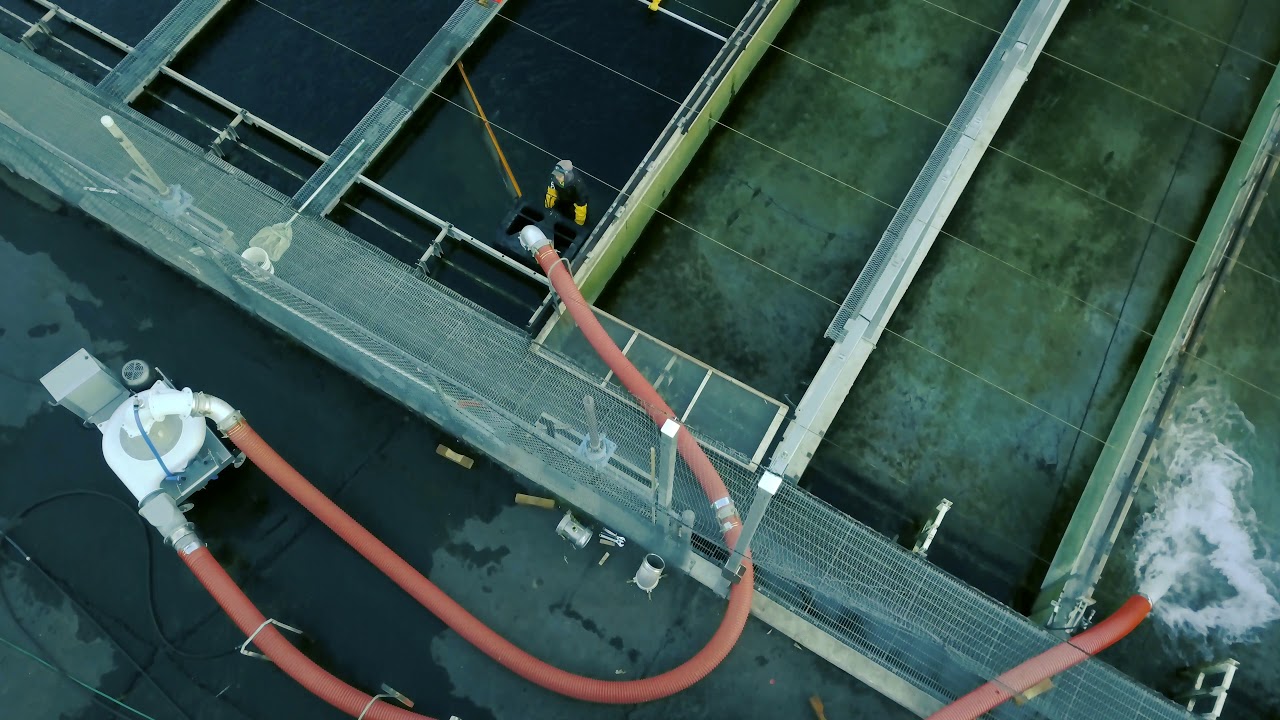

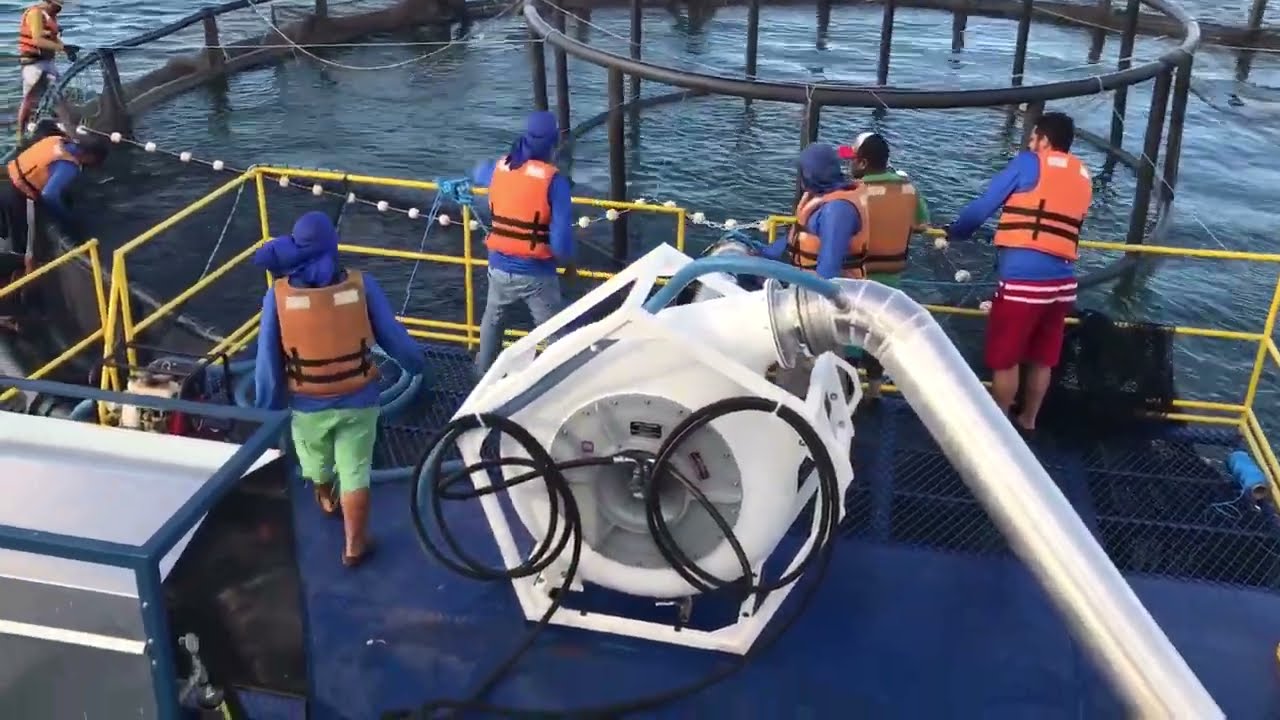

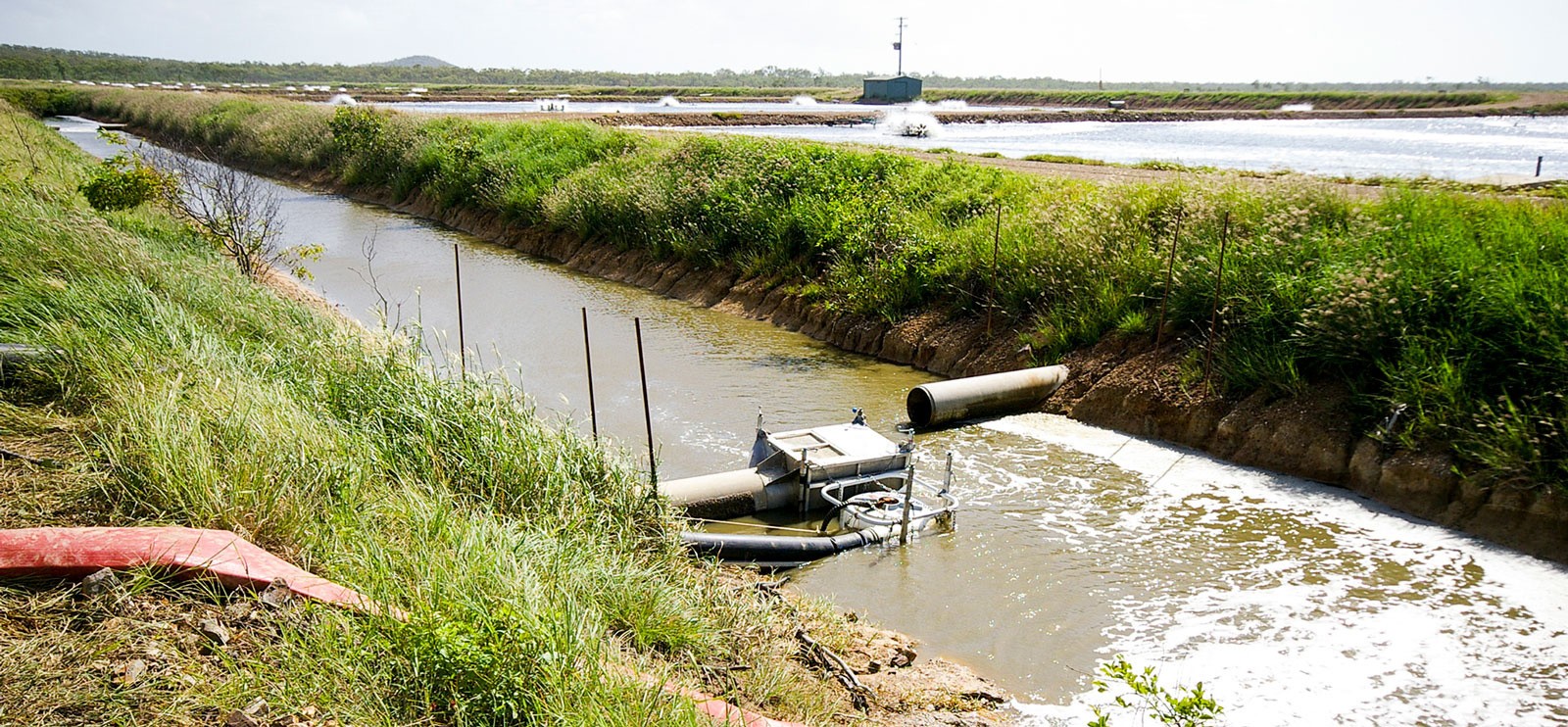

Typically the fish pump is placed into the raceway, pond , or cage-pen with the hydraulic leads and outlet hose attached. The pump is then positioned to have the ability to crowd or direct fish into the pump intake chute using a screen-crowder, cutter seines, or shrimp pond drainage systems. A discharge hose is attached and runs from the pump to a dewatering device or a fish grader which can be mounted on top of a live-haul truck, trailer, etc.
non-submersible applications
The Aqua-Life Fish Pump is the only fish pump worldwide, which can be used both Non-submersible as well as Submersible. European customers are using the Aqua-Life Fish Pump for both applications within the same hatchery and facility. Reports from the Mediterranean region have verified that when used Non-Submersible or “dry” that the fish size capacity, of the Aqua-Life Fish Pump, has been dramatically increased in low head applications. Whether you are pumping fish from Tanks, Raceways or Cage Pens ,this new option can make fish transfers as versatile as your imagination.
.jpg){kind=spacer}
shrimp applications
The Aqua-Life Shrimp Harvesting System has the capability of handling large volumes of shrimp over a short period of time with minimal labor. By avoiding the need to stop water flow during harvest, these systems also minimize the number of shrimp left in the pond to be hand picked. The process involves screening shrimp from the drainage water, pumping them to the dewatering tower where they are separated from the pond water and discharged into insulated totes filled with an ice-water slurry, which results in immediate chilling to near freezing.
Unlike the traditional system of alternately applying a layer of shrimp and a layer of ice, which can result in hot spots causing product deterioration. Each 1m³ insulated box will hold about 800 lbs (360kg.) of head on shrimp. The ice slurry system provides a consistent chilling every time. Also, crushing is avoided due to suspension of the shrimp in the ice-water slurry
jv shrimp applications
The BP40S and BP60SS BioStream pumps feature variable speed 7.5 H.P. (BP40S) and 10HP (BP60SS) electric drive, auto self-priming and optional remote control operation conveniently packaged into a compact aluminum cart. These units have been proven to transfer in excess of 2.5km and can be operated in series to extend that range.
Because the BioStream pump has the ability to gently and safely transfer Juvenile Shrimp, it eliminates the stress encountered from manual handling and is believed to have substantial benefits with prolonging and decreasing the onset of White Spot and EMS. These systems can be configured with counting (animals greater than 3g), dewatering, oxygen injection and any custom criteria that your application might require.
